UML Events and Signals Common Modeling Techniques

Common Modeling Techniques
  • Modeling a Family of Signals
  • Modeling Exception
Common Modeling Techniques of Events and Signals in UML

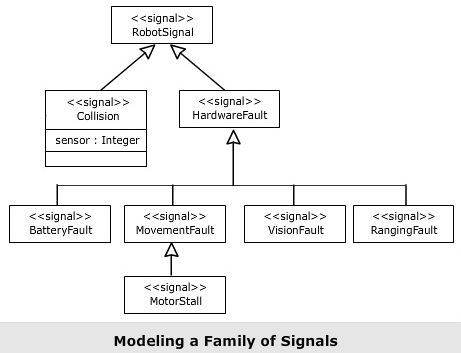

Modeling a Family of Signals
To model a family of signals:
  • Take into account all the different kinds of signals, to which a given set of active objects may respond
  • Identify the common types of signals and put them in a generalization/specialization hierarchy using inheritance
  • Put the general ones on the top of the hierarchy and the specialized ones at the bottom
cse study zone,estudies4you,csestudies4you,UML Events and Signals Common Modeling Techniques,UML Events and Signals ,events and signals in uml,Modeling Exception in uml,uml Modeling Exception,Modeling a Family of Signals in uml,uml Modeling a Family of Signals,

Modeling Exception
To model exceptions:
  • Identify the exceptional conditions that may be raised for each operation in each class and interface, and model them as signals
  • Place these exceptions in a hierarchy
  • Raise the general ones and lower the specialized ones. Also, introduce intermediate exceptions, wherever necessary
  • Model these signals as send dependencies from the operation to its exceptions
